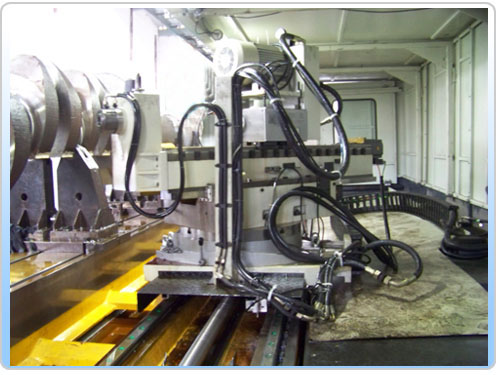

ZQK42 Series Crankshaft CNC Deep Hole Drilling Machine
The ZQK42 series crankshaft CNC deep hole drilling machine is a two-coordinate or three-coordinate CNC drilling machine specially designed for machining inclined and straight holes in crankshafts. This machine uses the external chip removal method (gun drilling) to complete deep hole machining of crankshafts in a single pass. The machine adopts a rotary worktable and adds a negative Z-axis, ensuring that multiple inclined oil holes and straight holes can be machined in a single clamping.
Main Technical Parameters (Three-Coordinate or Two-Coordinate)
| Technical Parameter | ZQK4202 | ZQK4203 | ZQK4204 |
|---|---|---|---|
| Machining Hole Diameter Range | φ3 – φ20 mm | φ4 – φ30 mm | φ8 – φ40 mm |
| Maximum Drilling Depth | 300 mm | 600 mm | 1000 mm |
| Spindle Speed Range | 800 – 7000 r/min | 800 – 6000 r/min | 500 – 4000 r/min |
| Feed Speed | 5 – 500 mm/min | 10 – 500 mm/min | 10 – 800 mm/min |
| Rapid Traverse | 3000 mm/min | 3000 mm/min | 3000 mm/min |
| Oil Tank Capacity | 1000 L | 1500 L | 1500 L |
| Number of Spindles | 1 / 2 / 3 / 4 | 1 or 2 | 1 or 2 |
| CNC System | KND (or customer choice) | KND (or customer choice) | KND (or customer choice) |
| Lifting Table Vertical Travel (Y-axis) | 300 mm | 1000 mm | 1000 mm (or customized) |
| Max. Table Travel (X-axis) | 650 mm / 800 mm | 1000 / 1500 / 2000 mm | 1500 / 2000 / 3000 mm (or customized) |
| Table Size | Matched | Matched | Matched |
| Cooling System Pressure Range | 1 – 10 MPa | 1 – 10 MPa | 1 – 6 MPa |
| Cooling System Flow Rate Range | 6 – 80 L/min | 6 – 100 L/min | 10 – 150 L/min |
| Total Motor Power | 22 / 25 kW | Approx. 28 kW | Approx. 32 kW |
| X / Y / Z Axis Positioning Accuracy | 0.05 mm | 0.05 mm | 0.05 mm |
| X / Y / Z Axis Repeatability | 0.03 mm | 0.03 mm | 0.03 mm |
Note: All products in this series are serial products. Various special requirements and special-shaped parts can be customized according to customer needs.
